Cabinet Measurement Guide

Measuring your kitchen is easy. By following these simple instructions and using the graph paper provided in the layout download, you can help speed along the design process for your new kitchen. If you have any questions as you measure your space, don’t hesitate to reach out to our design team for assistance.

Contact Our Design Team

How to Measure Your Space

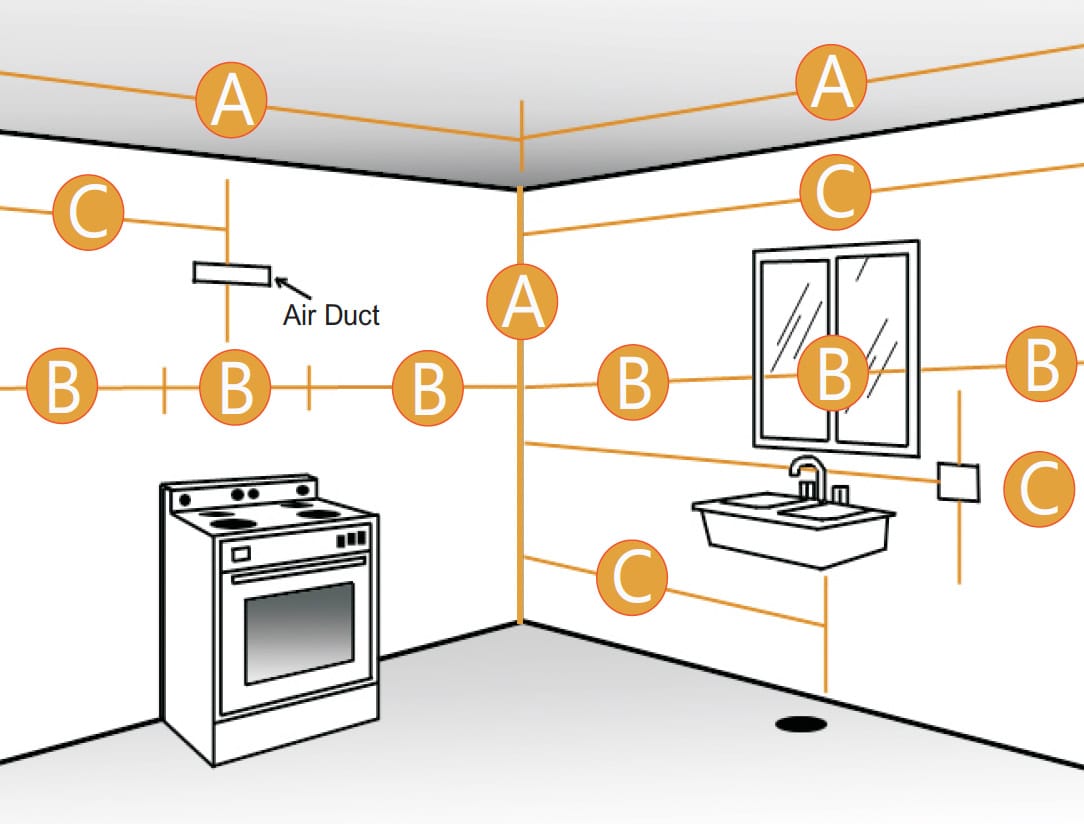

A. Measure the overall length and height of each wall.
B. Measure the doors, windows, and closets to the outer edge of the moulding. Measure the width and height of your appliances.
C. Measure to the centerline of plumbing, ducting, and outlets. Also note the location of your electrical outlets, plumbing fixtures, and air ducts. These can be moved to accommodate your design, but it’s best to work around them for reduced costs and labour.

Sketch Your New Layout

Use your measurements to sketch your new cabinet layout on the grid. Start at 0 feet, 0 feet. Each large square equals one foot, and each small square equals three inches.

Click for Cabinet Measurement PDF
